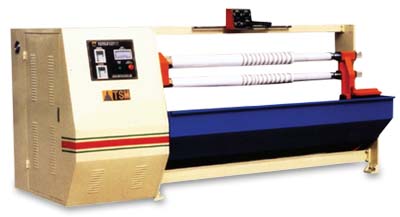

HOME > Plastic Injection Molding Machine > Multi-functional Equipment for Special Adhesive tape > KH-703 Duplex Lathe Slitter


APPLICATION
Suitable for cutting OPP tape/PVC tape/Electrical tape/Mask tape/Double-side tape/Kraft tape/Cloth tape.
FEATURES
Every machine motion is progrannable. Operation ease and flexibility.
Silicon lubricating system: Reciruiated silicon lubricant prevents adhesives from clinging to the cutting blade,and ensures smooth cuts each and every time.
Each cut is exactly where It's supposed to be cutting head is positioned by a servo motor-ballscren combination along precision slide-heaving rails. Every move is smooth,fast and every accurate-even extremely long moves.
Each cut has our full support: Hydraulic pressure holds upper and lower tape rolls firmly against the cutting blade for maximum stability-no matter how large or small the roll diameter.
Double roll with single circular knive to increase efficiency greatly.

MAIN TECHNICAL PARAMETERS:
Vaild width
1.3 M OR 1.6 M
Maximum cut diameter150 mm
Minimum silitting width3 mm
Inside diameter of pager core32-76.2 mm
Blad drive motor3 HP
Material roll drive motor5 HP
Blade diameter200 mm / 250 mm

Due to machine development,above information may be changed at any time without prior notice.
The actual specification of machine accordings to the quotation.
